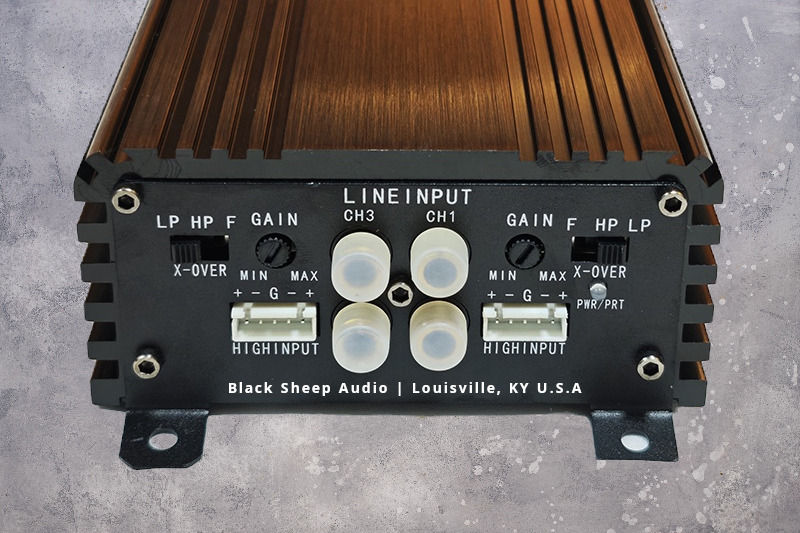

Black Sheep Audio | BSM-100.4 | 4ch Mini Series Amplifer

Black Sheep Audio | BSM-100.4 | 4ch Mini Series Amplifer

$299.99Price
Quantity
September

Black Sheep Audio BSM-100.4 Class AB Multi-Channel Amplifier

Unleash pristine multi-channel performance with the Black Sheep Audio BSM-100.4—engineered to drive complex component systems and full-range setups with absolute authority and crystal-clear acoustic precision. Whether you are outfitting a daily cruiser, a heavy-duty truck, or a custom build, this versatile Class AB powerhouse delivers rich, dynamic sound across the entire frequency spectrum.

Uncompromising Performance

  • Class AB Topology: Advanced multi-channel architecture designed for superior sonic purity and clean signal reproduction across your entire stage.

  • Versatile Power Delivery: Pumps out a robust 100W x 4 channels at 4 Ohm, steps up to 150W x 4 channels at 2 Ohm, and pushes a massive 320W x 2 channels bridged at 4 Ohm for flexible system configurations.

  • Full-Range Precision: Tuned with a wide frequency response of 10Hz to 20kHz to capture every subtle detail from deep midbass to crystal-clear highs.

  • Dedicated Bass Control: Outfitted with an adjustable low bass frequency range of 10Hz to 180Hz to dial in your sub stage perfectly.

  • Pristine Signal Integrity: Boasts an ultra-clean signal-to-noise ratio of greater than or equal to 96dB and total harmonic distortion under <0.05%.

Built for the Grind

  • Wide Voltage Range: Operates stably on 10 to 16VDC electrical systems.

  • High-Mass Aluminum Chassis: Housed in a rugged, compact aluminum frame measuring 235 x 100 x 45 mm and weighing just 1.7 kg, built to handle demanding installs without thermal compromise.

  • Protected and Ready: Equipped with dual 40A fuses and a flexible 0.5V to 6V input sensitivity range for seamless integration with any head unit.

Technical Specifications

  • Amplifier Type: Class AB Car Amplifier

  • RMS Power at 4 Ohm: 100W x 4 Channels

  • RMS Power at 2 Ohm: 150W x 4 Channels

  • Bridged Power at 4 Ohm: 320W x 2 Channels

  • Frequency Response: 10Hz to 20kHz

  • Signal-to-Noise Ratio: Greater than or equal to 96dB

  • Input Sensitivity: 0.5V to 6V

  • Total Harmonic Distortion (T.H.D): <0.05%

  • Input Impedance: 20 kOhm

  • Low Bass Frequency Range: 10Hz to 180Hz

  • Supply Voltage: 10 to 16VDC

  • Recommended Fuse Type: 40A x 2

  • Housing Material: Aluminum

  • Application: Car amplifier for car, bus, or truck audio systems

  • Weight: 1.7 kg

  • Product Dimensions: 235 x 100 x 45 mm
